Fysik

Structural physics for Valheim building. In vanilla Valheim, a piece only cares about how far it is from the ground. Fysik replaces that with a force calculation in which the shape of your build matters, in the spirit of Poly Bridge and Bridge Constructor:

• Arches carry their load in compression and can span gaps that a flat beam cannot.
• Braces and triangles carry load along their length instead of bending: a diagonal under a balcony halves its stress.
• Cantilevers bend, and the longer they reach, the more they strain.
• An overloaded piece cracks before it falls: it turns red, shakes, creaks and sheds dust, giving you a few seconds to shore it up. Once something gives way, the collapse follows instantly.
• Building an arch works like the real thing: until the last stone closes it, an unfinished arch is just two cantilevers and needs scaffolding. Close it, remove the scaffolding, and it stands.

⚠ Before you install

Fysik is on from the start. As soon as a world loads, every building made by players is checked against the physics Fysik applies, and buildings that do not respect it will crack and fall, including bases you built before installing it. Back up your world first. We recommend starting a new world with Fysik, so everything you build is designed for it from the first post.

Buildings that come with the world (stone towers, abandoned houses, villages, ruins) are not simulated: they keep vanilla support, unless the server sets Structure.WorldBuildings = Physics (see World buildings).

Status

Early access. Material values are still being calibrated. Back up your worlds before trying it.

Installation

Install with a mod manager (r2modman, Thunderstore Mod Manager) or manually:

1. Install BepInExPack_Valheim and Jötunn.
2. Copy plugins/Fysik.dll into BepInEx/plugins/Fysik/.

Fysik must be installed on the server and on every client, with exactly the same version (every player who owns part of a structure must calculate it exactly as the others do). Players without it cannot join a server that has it, and vice versa.

Existing player buildings follow the new rules as soon as the mod is enabled: back up your world, and preferably start a new one. To look at an old base before letting it settle, set Structure.Mode = Sandbox (nothing falls for lack of support) or DisplayOnly (vanilla decides).

Seeing the forces

• Hammer: aim at a piece. It is colored by stress, from blue (relaxed) through green and yellow to red (at its limit), and next to the crosshair you get its stress, e.g. Compression 72%, then its name, material and own weight, the weight it holds up (Holds 6.5 t) and, for posts, beams and logs, how hard they are squeezed or stretched (Squeezed 6.7 t). Aiming at a chest, torch or pile shows its name and weight. Light blue means the structure is still being calculated; magenta means it has no path to the ground at all; neutral grey means a world building that Fysik does not simulate (World building · not simulated).
• Placing a piece: the ghost is colored by the stress it would have once placed, with the value next to the crosshair (Preview: Bending 85%) and the same lines as the hammer, including what it would hold up. If it would push another piece past its limit, a red line names that piece. When vanilla says the spot is invalid, the ghost stays vanilla red.
• X-ray (F7): colors every piece within 40 m. Ctrl+F7 widens the radius by 10 m, up to 80 m, then back to 40 m.
• Cracking: a piece above 100% pulses red, shakes, creaks and sheds dust. You have CrackWarningSeconds (5 s) to shore it up (add a post, a brace, finish the arch) before it falls. Once something gives way, everything that lost its support comes down with it at once, as debris that bursts on hitting the ground, like a building being imploded; whatever is left overloaded follows without warning. A piece left with no path to the ground at all (you removed its support) has nothing to shore up and falls at once, as in vanilla.
• Furniture: beds, tables, smelters, hearths, portals and other pieces the game tags as objects rather than structure weigh what they are made of (4 kg per piece of wood, 10 kg per stone, 4 kg per metal bar, adjustable in the Weight settings): a smelter about 250 kg, a bed 32 kg, a chair 16 kg. Chests, workbenches, forges, torches, stone and wood piles and similar pieces that hold nothing up weigh the same way and load the pieces they rest on: a stone pile is 500 kg, a forge 120 kg, a chest 40 to 113 kg, a standing torch about 9 kg. Their load counts once they are placed; the ghost does not show it yet. They still need something to rest on and fall when the piece under them goes, as in vanilla. Fences, stake walls, carved statues and some stacks (fine wood, metal bars) count as structure and weigh their full volume.

World buildings

Stone towers, abandoned houses, villages, ruins, fortresses and everything else the game places in the world were designed for vanilla support, not for real forces. By default Fysik leaves them alone:

• Only what players build is simulated. World buildings keep vanilla support: they stand as the game built them, and if you break their base, the rest crumbles as in vanilla. Fysik never brings them down.
• They show in neutral grey with the hammer and the X-ray.
• A player build resting on a world building is held as if on rock. If that world building is destroyed, your build is recalculated and may fall.

To simulate world buildings too, the server sets Structure.WorldBuildings = Physics. They are then calculated, colored and brought down like any player build. This changes the game: many of them do not respect the physics and will crack and fall, for good, as soon as someone comes near.

A piece counts as a world building when no player placed it. Pieces spawned with console commands, or by mods that do not record a builder, count as world buildings too.

Building guide

The pictures below were computed with Fysik's own solver and the default materials, using the same pieces you build with. In game, pieces snap a little differently, so expect similar, not identical, numbers.

Squeeze, don't bend

A piece is far stronger squeezed or pulled along its length than bent across it. A post under a roof is squeezed and barely notices; a beam reaching out is bent, and the joint where it leaves its support carries the whole reach. The stress grows with the square of the length: half again as far out means more than twice the stress.

• With 4 m core wood logs and floors on top, a balcony 8 m out is comfortable (46%), 12 m out is just past the limit (101%) and 16 m out falls.
• A diagonal brace turns the bending into a squeeze: two 45° logs from the ground to the first joint bring the 12 m balcony back to 45%.
• The brace pushes back against whatever it stands on. Give the house a diagonal (or a solid wall), or the push bends its posts instead.

Arches

An arch turns the weight into a squeeze that follows its curve, so it spans far more than a flat beam. This bridge is 24 m long with 20 m clear underneath; hanging the deck from the arch takes it from 67% down to 43%.

• Prop it while you build. Until the arches close, the hangers and half arches hang on the deck and the corner posts crack (118%). One plain pole under the middle of each side keeps everything below 38%; remove the poles once both arches are closed.
• Hold its feet. An arch pushes outwards where it lands. Here the deck beams tie the two feet together (in tension, about 46 kN); otherwise set the feet against the ground or a heavy wall.
• Hang the deck from it. Poles from the arch down to the deck (hangers) carry the deck in tension.
• Two posts per corner. A deck flexes, and a lone post glued under its end gets bent (87%); two posts 2 m apart hold it straight (24%).

• Or brace the ends. Two 45° logs from the foot of each post up to the deck close a triangle, and the same bridge needs no scaffolding: nothing goes above 59% while it is built, as long as all the beams meet before the floors go on. The deck then holds on its own (41%), so the arch is for looks. A short brace from halfway up the post would bend the post instead (118%).

Wider gaps and boats

To leave more water free, put the structure under the deck and let stone take the ends. In the pictures, temporary props are dashed: build with them, then take them away.

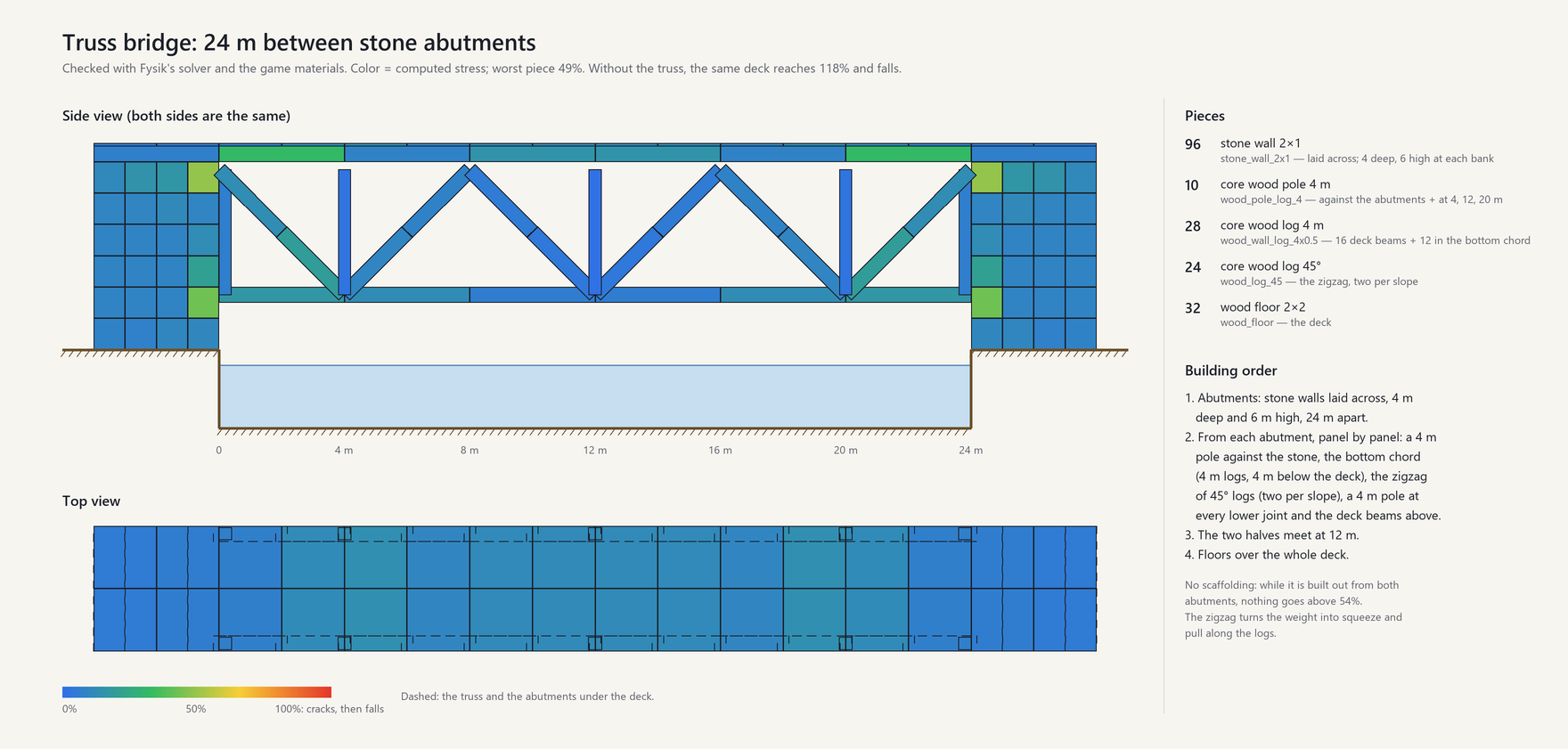

• Truss. A zigzag of 45° logs between the deck and a bottom chord 4 m below turns the weight into squeeze and pull along the logs: worst piece 49% between stone abutments 24 m apart, where the deck alone would reach 118% and fall. Build it out from both abutments, panel by panel: nothing goes above 54% on the way, so it needs no scaffolding.

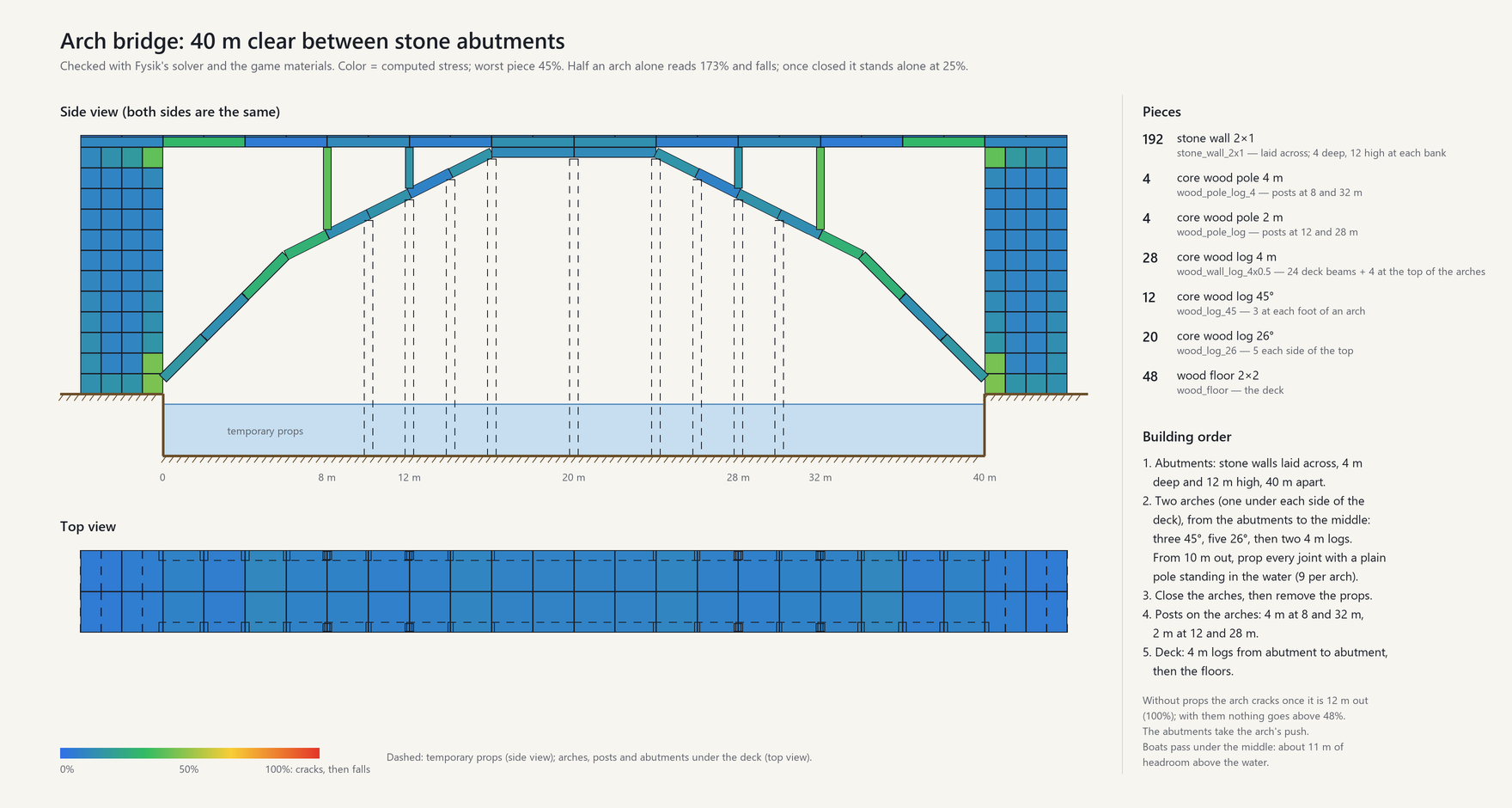

• Arch under the deck. With heavy stone abutments to push against, a wooden arch leaves 40 m of water clear, with about 11 m of headroom for boats in the middle: worst piece 45%. Without props the arch cracks once it is 12 m out; a plain pole standing in the water under every joint from 10 m out keeps it below 48%. Once closed it stands on its own (25%) and the props come out.

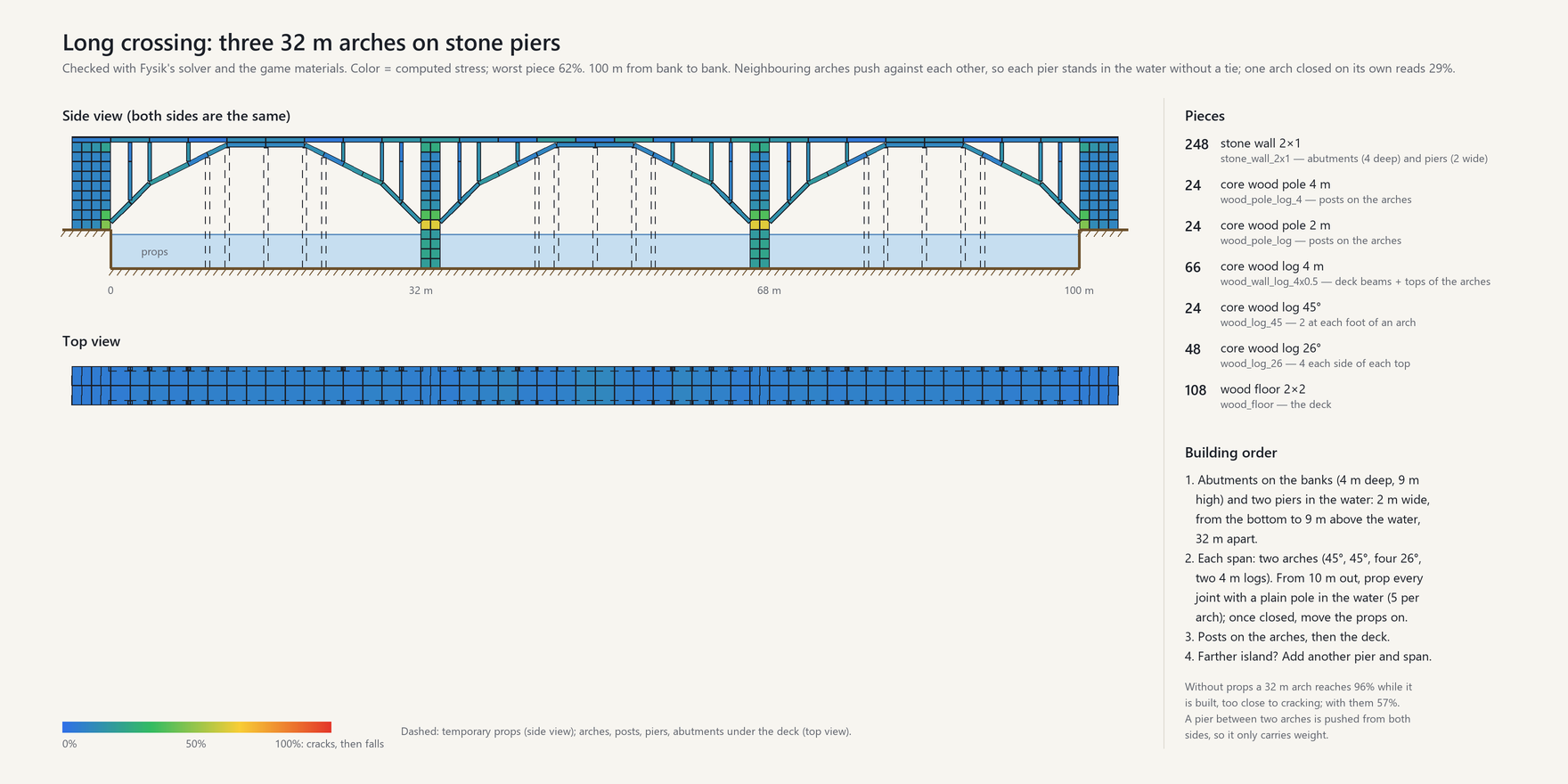

• Farther islands. Repeat the span on stone piers standing in the water. Between two arches a pier is pushed from both sides and only carries weight: three 32 m arches cross 100 m at 62%. Prop each arch from 10 m out as it is built (it reaches 96% without), then move the props to the next span.

Stone bridges

Stone is strong squeezed and weak pulled. A pair of stone arches (stone_arch) closes 4 m; wider arches are built out from the piers in steps and closed at the top with a pair of stone arches.

• Pillars every 4 m, a pair of stone arches between each two, stone floors on top: worst piece 23%. At this span the arches are mostly for looks: the same floors laid straight on the pillars hold too (22%). No scaffolding: the first stone arch of each pair stands on its pillar (17%) until the second one closes it.

• With 8 m between the piers the arch does the work: worst piece 48%, while the same piers with a flat deck reach 122% and the deck falls.
• Each arch steps out 1 m and then 2 m from the piers and closes with two stone arches. Before the arches close nothing goes above 39%, so no scaffolding is needed.

Materials

• Stone is very strong squeezed and weak pulled: use it for walls, pillars and arches, not for beams or overhangs. Span an opening in a stone wall with an arch or a wooden beam.
• Core wood (logs) is stronger than wood; iron is strong in every direction.
• Long, thin pieces buckle: a slender post carries less than its material alone would allow.

Tips

• Watch the ghost's color before placing each piece, and check the whole building with the X-ray (F7) after big changes.
• When something cracks, you have a few seconds: put a post under it, add a brace, or remove what it carries (a stone pile is 500 kg).
• Badly damaged pieces (below half health) are weaker; repair them.
• Big bases: structures up to Structure.MaxFrameBodies pieces (2000) get the full calculation. Larger ones use a simpler model that does not recognise arches; raise the limit (up to 5000) if you build arches into a big base.
• Too hard or too easy? Ask your server admin about Structure.Difficulty.

Roadmap

Next:

• Masonry: stone blocks that only hold by pressing on each other, interlocking walls, arches built on wooden centering
• Loads beyond self-weight: chest contents, snow on roofs

Later:

• Calibration with player builds (feedback welcome)
• Faster recalculation for very large bases
• Translations into every language Valheim supports
• A website to plan and test a build in the browser with the same solver

Configuration

BepInEx/config/menezesbruno.fysik.cfg. Settings marked server are enforced by the server and synced to every client; they can also be edited in game with a configuration manager (F1).

Section	Setting	Default	Range	Description
Structure	Mode (server)	Physics	Physics, DisplayOnly, Sandbox	Physics: Fysik decides what falls. DisplayOnly: vanilla decides, Fysik only shows. Sandbox: nothing falls for lack of support.
Structure	WorldBuildings (server)	Vanilla	Vanilla, Physics	Buildings that come with the world (stone towers, abandoned houses, villages, ruins). Vanilla: they keep vanilla support, are not simulated and show in grey; player builds rest on them as on rock. Physics: simulated like player builds. Warning: many were not built for real forces and will crack and fall when players come near, changing the game.
Failure	CrackWarningSeconds (server)	5	0–60	Seconds an overloaded piece stays cracked before it falls.
Failure	DamageWeakens (server)	on		Pieces below half health are weaker, down to 25% strength at the brink of breaking; rain wear alone never weakens them. Off: damage never changes strength.
Structure	Difficulty (server)	Normal	Relaxed, Normal, Strict	Relaxed: materials 50% stronger (longer spans and cantilevers). Strict: 30% weaker.
Structure	MaxFrameBodies (server)	2000	500–5000	Largest structure solved with the full frame analysis; bigger ones use a simplified model that does not recognise arches. Higher values take longer to update (about 0.5 s for 2000 pieces, 2 s for 5000).
Material.<type>	Density, CompressiveStrength, TensileStrength, ShearStrength, BucklingSlenderness (server)	per material		Density (kg/m³) gives structural pieces their weight; strengths in MPa. Stone is strong in compression and weak in tension. Objects weigh their materials instead (see Weight).
Weight	Wood, Stone, MetalBar, Nail (server)	4, 10, 4, 0.1	0–1000	Kilograms per item used to build an object (furniture, crafting stations, chests, torches, piles); objects weigh their materials, not their volume.
Weight	PerItemWeight (server)	2	0–100	Kilograms per unit of the game's item weight, for every other material in an object's recipe.
Display	HammerInfo	on		Stress color, value, weight and weight held on the piece under the hammer.
Display	PlacementPreview	on		Predicted stress and weight held on the piece being placed.
Display	CollapseAnimation	on		Falling pieces come down as debris and burst on impact (off: they shatter in place, as in vanilla).
Display	XRayKey	F7		Toggles the X-ray view.
Display	XRayRadius	40	40–80	X-ray radius, metres.
Display	XRayRadiusKey	Ctrl+F7		Widens the X-ray radius by 10 m (after 80 m, back to 40 m).
Performance	FrameBudgetMs	1.5	0.25–10	Time per frame spent on calculations.
Performance	BackgroundSolver	on		Solve structures on a worker thread, without taking frame time.
Debug	LogSolves	on		One log line per structure solved.
Debug	LogGeometry	on		One log line per kind of piece: colliders, size, weight.
Debug	DumpKey	Ctrl+F8		Writes the structure under the hammer to BepInEx/fysik-dump.txt.

The console command fysik stats, fysik recalc or fysik dump (F5; the game must be started with -console) shows solver statistics, recalculates everything or writes the structure under the hammer to BepInEx/fysik-dump.txt.

Compatibility

Fysik takes over structural integrity, so it is expected to conflict with other mods that change it, such as NoBuildIntegrity, Forever Build or Balrond Better Build. Pieces added by other mods will use conservative default material properties, with a warning in the log for each unknown material. Their furniture and other objects weigh their recipe: Fysik knows the vanilla wood, stone, metal bars and nails, and counts any other resource by its weight in the inventory (Weight.PerItemWeight).

Links

• Source code and issues: https://github.com/menezesbruno/Fysik
• License: MIT
