ValheimTomrer

Blueprints for Valheim 1.0, with an editor inside the game. Design a building in 3D, or copy one you already built, and put the whole thing up with the hammer.

(Tømrer is Norwegian for carpenter.)

Only you need to install it. It adds no new pieces or items, and every piece is built the normal way, with materials you actually have. I play Valheim with a controller, so everything works on a pad too, the editor included.

As far as I know, no other Valheim mod lets you draw a blueprint inside the game.

Features

• An editor inside the game (F7), with a 3D view, every piece the hammer has, and the same snapping as the hammer. You don't need a separate program.
• Copy a building you already have (F8). Put a rectangle over it and it becomes a blueprint.
• Build a whole blueprint with the hammer: press B to pick one, aim and click.
• Materials come from your inventory and from chests near you, carts and ship holds included.
• Short on materials? It builds what you can pay for, from the bottom up, and shows the rest as ghost pieces. Come back with more and finish it.
• In the editor, a piece shows the hammer's support colours while you place it, so you see what would fall down before you build it.
• The build card lists every material: what you have and what you need.
• Blueprints are small text files you can share. It also reads .blueprint files from PlanBuild, Buildheim and Infinity Hammer, and .vbuild files from BuildShare.

The game's rules still apply. Every piece costs what it normally costs, you need a workbench nearby, and you can only build pieces you have unlocked.

Installation

The easy way is a mod manager (r2modman, Gale or Thunderstore Mod Manager). It installs BepInEx for you.

By hand: install BepInExPack Valheim 5.4.2350 or newer, then unzip the download and put ValheimTomrer.dll in Valheim/BepInEx/plugins/.

On an Apple Silicon Mac, read the Mac section at the bottom first, or no mods will load at all.

Getting started

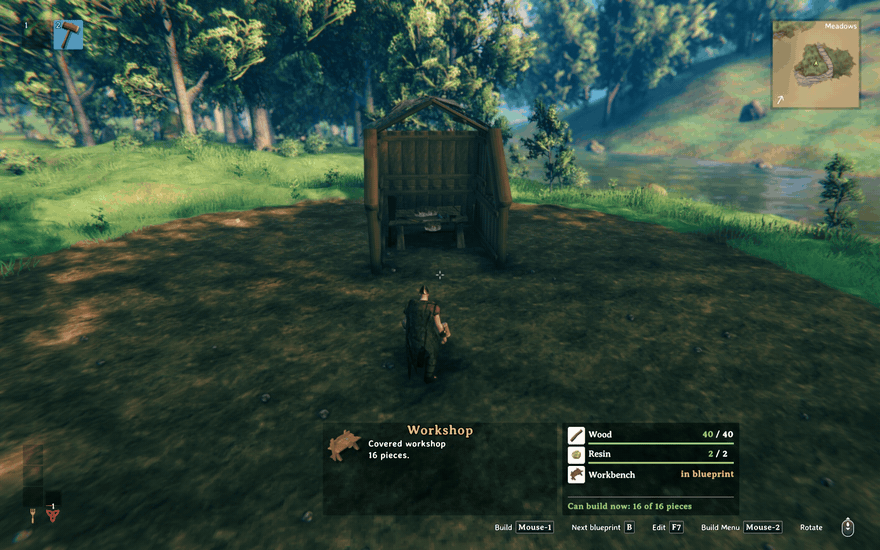

Build the example

The mod comes with one blueprint, a small covered workshop, so you can try it right away.

1. Take out the hammer and press B (pad: □). The workshop shows up where you aim.
2. Turn it with the mouse wheel (pad: L2 + right stick).
3. Click (pad: R2).

If you have the materials, the whole workshop goes up at once. If you don't, see "Finishing a build later" below. Press B after the last blueprint to go back to normal building.

While a blueprint is in your hand, the key hints at the bottom of the screen show the blueprint keys instead of the usual ones. They show your own key bindings, or the button icons when you use a pad.

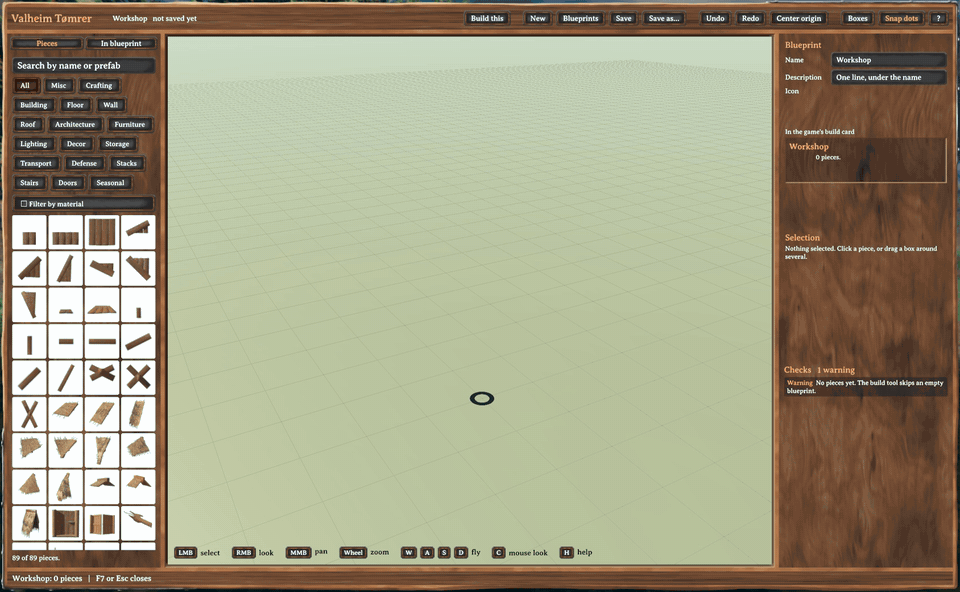

Make your own

1. Press F7 (pad: L2 + □) to open the editor. You don't need the hammer for this. The same key closes it.
2. Click New in the top bar.
3. Pick a piece from the list on the left and click in the 3D view to place it. It snaps to other pieces the same way the hammer does. Hold Shift to place it without snapping.
4. The piece stays in your hand, so keep clicking to place more. Esc puts it away.
5. Give the blueprint a name on the right (and an icon, if you like) and press Ctrl+S.
6. Take out the hammer, open the editor and click Build this in the top bar. The editor closes and the blueprint is in your hand.

Some things that help:

• A piece's colour shows how well it is held up, the same colours the hammer uses. Red and blinking means it would fall down, so the click does nothing. Put a pole or a wall under it first.
• Click a piece to select it. G moves it, R turns it, Delete removes it and Ctrl+Z undoes. Drag a box to select several pieces.
• The Checks list on the right tells you what is wrong with the blueprint, for example pieces that would fall down.
• The workshop that comes with the mod is read only. Use Save as to make your own copy of it.
• Blueprints in the top bar lists all of them. You can open or delete yours from there.

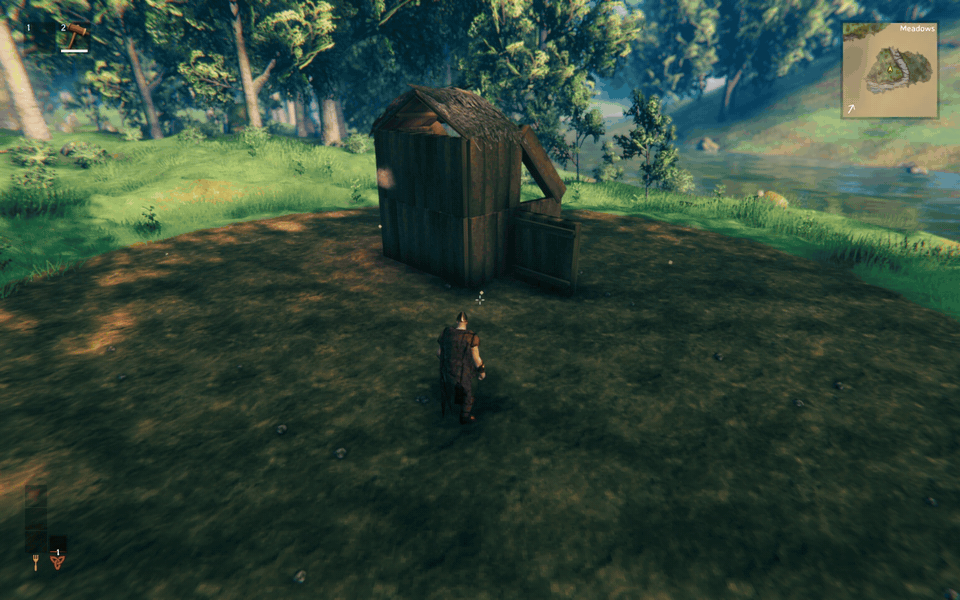

Copy a building

1. Stand where you can see the whole building and press F8 (pad: L2 + △). A yellow 8 x 8 m rectangle appears on the ground where you aim.
2. Fit it over the building. The wheel turns it, Shift + wheel changes the width and Alt + wheel the depth (the pad buttons are in the Controls section). Pieces that will be copied glow yellow. Pieces that cross the edge are left out and glow orange.
3. Press F8 again. The editor opens with the copy and asks for a name.

Esc (pad: ○) cancels it.

The copy takes everything from 8 m below the ground to 64 m above it, so the roof comes along. If the building stands at an angle, the copy is turned straight. Only pieces the hammer can build are copied. Planted crops or pieces from other mods are left out, and the message tells you how many.

Materials

The hammer takes materials from your inventory first, then from chests within 20 m, nearest first. Carts and ship holds count as chests. It only uses chests you are allowed to open, so not someone else's private chest, and nothing inside someone else's ward. You can change the range, or turn chests off, in the settings.

With a blueprint in hand, the build card shows a materials list. For each item you see what you have and what you need (green when it's enough, red when not). It also shows which crafting stations are in range and how many pieces the next click will build. The editor shows the same list.

The click does nothing if a piece is not unlocked yet, the workbench is too far away or something is in the way. The message tells you which.

Finishing a build later

When you don't have enough materials, a click still builds what you can pay for. It goes from the bottom up and skips anything that would not stand yet. The message says how many pieces went up and what is still missing. The rest stays as an unfinished build:

• With the hammer out near the build, the missing pieces show as ghosts. Light blue ones will be built by your next click, red ones are waiting for more materials.
• Right after the click, the hammer stays on that build ("Continue"). Click again when you have more.
• Later, press B near the build. Unfinished builds within 40 m come first in the list, for example "Continue: Workshop (6/16)".
• You can stand inside while you build. The piece where you stand is skipped, and the message says so.
• When the last piece is up, you get "Workshop finished." and the hammer goes back to normal.

Unfinished builds are saved per world in BepInEx/config/ValheimTomrer/sites/, not in the world save. The mod looks at the world to see what is already built, so pieces you build or break by hand count too.

Removing an unfinished build

In Continue, press the hammer's Remove key, the one you use to take a piece down (pad: R1).

If nothing of it is built yet, it is removed right away. If some of it is built, you get a choice:

Button	What it does
Cancel	Nothing happens.
Unbuilt parts	Removes the plan and the ghosts. What you built stays.
Whole structure	Also takes down every built piece, from the top, the same as doing it with the hammer. The materials drop on the ground.

Some pieces can't be taken down, for example when there is no workbench near, a chest still has items in it, or the piece is inside someone else's ward. Those pieces stay, and so do the pieces holding them up. The message says why.

The window works with the mouse and Esc, or with the pad: D-pad or left stick to choose, × to press, ○ to cancel. It starts on Cancel.

Controls

PlayStation names first, Xbox names in brackets. L2 means the game's modifier button: L2 (LT) in the default controller layout, L1 (LB) in the alternative one.

Hammer and copying a building

	Keyboard and mouse	Controller
Next blueprint (unfinished builds nearby come first)	B	□ (X)
Build	Left click	R2 (RT)
Turn 22.5°	Wheel	L2 (LT) + right stick left, right
Remove the unfinished build (in Continue)	The hammer's Remove key	R1 (RB)
Open the editor with the blueprint in hand	F7	L2 (LT) + □ (X)
Start copying a building, press again to copy	F8	L2 (LT) + △ (Y)
Copy area: turn 22.5°	Wheel	D-pad left, right
Copy area: width, 2 m a step	Shift + wheel	L2 (LT) + D-pad left, right (right is bigger)
Copy area: depth, 2 m a step	Alt + wheel	L2 (LT) + D-pad up, down (up is bigger)
Copy area: both sides, 2 m a step	Shift + Alt + wheel	D-pad up, down (up is bigger)
Stop copying	Esc	○ (B)

While the copy area is up, the D-pad and ○ only control it. They don't change your hotbar, use your forsaken power, zoom or jump, and L2 + △ doesn't open the inventory.

Editor, keyboard and mouse

Key	What it does
Click	Select a piece, or place the one in your hand. Shift + click adds to the selection or takes out of it.
Drag	Select everything in the box
Right drag	Look around
Middle drag, Shift + right drag	Move the view sideways
Wheel	Zoom toward the cursor. While placing, it turns the piece 22.5°.
W A S D	Fly
Space, Ctrl	Fly up, down. Hold Shift to fly 3 times faster.
C	Lock the mouse to the view and look around like in the game. Esc unlocks it.
Ctrl + A	Select all
G	Move the selection
Ctrl + D	Copy the selection. It keeps making copies until you press Esc.
R, Shift + R	Turn 22.5°, the piece in your hand or else the selection
Arrow keys	Move the selection 0.5 m along the ground (with Alt, 0.1 m)
Page Up, Page Down	Move the selection up, down
Shift, held	No snapping
Q, E	Change which snap point of the piece goes where you aim
Delete, Backspace	Delete the selection
Ctrl + Z	Undo
Ctrl + Y, Shift + Ctrl + Z	Redo
F	Look at the selection, or at everything
Ctrl + S	Save
H, ?	Help, with these tables
Tab, Shift + Tab	Move between the buttons and panels without the mouse. Arrow keys step, Enter presses.
Esc	Go back one step, for example stop typing, close a window or put away the piece in your hand. When there is nothing left, it closes the editor.

On a Mac, Cmd works everywhere Ctrl does.

Editor, controller

The controller works from the crosshair in the middle of the 3D view.

Button	What it does
Left stick	Fly
L1 (LB) + left stick	Fly 3 times faster
Right stick	Look around, at the game's own gamepad sensitivity
D-pad up, down	Fly up, down
R2 (RT)	Place the piece in your hand, or select the piece under the crosshair
L1 (LB) + R2 (RT)	Add the piece under the crosshair to the selection, or take it out
L2 (LT) + R2 (RT)	Place another piece like the one under the crosshair
L2 (LT) + right stick left, right	Turn 22.5°
L1 (LB), held	No snapping
L3, R3 while placing	Change the snap point
R3	Look at the selection
× (A)	Pieces menu: D-pad picks, L1 and R1 change the tab, × places, ○ closes
□ (X)	Move the piece under the crosshair. R2 drops it.
△ (Y)	Copy it. It keeps making copies until you press ○.
R1 (RB)	Delete it
D-pad left, right	Undo, redo
○ (B)	Go back one step, like Esc. When there is nothing left, it closes the editor.
L2 (LT) + □ (X)	Close the editor. The same buttons open it.
Options (Menu)	Help

□, △ and R1 work on the whole selection when the piece under the crosshair is part of it, and on the selection alone when the crosshair is on nothing.

Buttons and panels:

Button	What it does
L3 (LS), nothing in hand	Go to the buttons and panels. An orange ring shows where you are.
D-pad, left stick	Move the ring
L1 (LB), R1 (RB)	Next panel: top bar, left, right
× (A)	Press what the ring is on. On a text box, start typing.
Right stick up, down	Scroll the panel, for example a long materials list
○ (B)	Back to the 3D view. In a text box, stop typing first.
D-pad, in a text box	Stop typing and move the ring on
D-pad right, then ×, in Blueprints	Delete one of your blueprints. It asks first and starts on Cancel. ○ goes back to the list.

Windows like Blueprints and Save as, and every question, put the ring on themselves as soon as they open: the D-pad moves, × picks, ○ closes. In Save as the name box is selected but not typing, so down and × saves with the name shown. Press × on the box to type a new one.

The rows in the piece grid, the In blueprint list and the Checks list can't be picked with the pad. Use the pieces menu (×) to place pieces.

Settings

The config file is created the first time you start the game with the mod: BepInEx/config/com.mikamarik.valheimtomrer.cfg. With Configuration Manager you can change it in the game (F1).

Section	Setting	Default	What it does
General	Enabled	true	Turns the whole mod on or off
Blueprints	Key	B	Next blueprint, with the hammer out
Editor	Key	F7	Opens and closes the editor
Editor	CaptureKey	F8	Copies a building
Editor	ShowAllPieces	false	Shows every piece in the editor, not only the ones you have unlocked
Editor	SnapDots	true	Shows the snap points while you place a piece. Snapping works either way.
Editor	Boxes	false	Draws pieces as plain boxes instead of models
Build	UseChests	true	Takes materials from nearby chests too, not only from your inventory
Build	ChestRange	20	How close a chest must be, in metres (0 to 100)

The Boxes and Snap dots buttons in the editor change these settings too. The controller buttons follow the game's controller layout.

Blueprint files

Your blueprints are in BepInEx/config/ValheimTomrer/blueprints/, one text file each with a line per piece. Put a file there and it shows up right away, no restart needed.

Files from PlanBuild, Buildheim and Infinity Hammer (.blueprint) and BuildShare (.vbuild) work too. If the mod can't save a file back exactly as it was, it opens read only. Save as makes your own copy.

A blueprint with no pieces is a normal file, so you can name one before you place anything. B skips it until it has pieces.

Compatibility

• Client-side. Nobody else needs the mod, and there is nothing to install on a server.
• Safe to remove. It adds no pieces or items, so nothing in your world breaks, and what you built stays.
• Works in multiplayer, I play it with friends. The others see your builds as normal pieces.
• I haven't tested it together with other building mods yet. If something breaks, please open an issue.

Known issues

• The check for what would fall down assumes flat ground. On a steep slope the game can still let a piece fall, and its materials drop on the ground.
• On the pad, some lists in the editor can't be picked (see the controller table).

Mac

On Apple Silicon Macs, BepInEx loads no mods at all when Valheim runs natively, and it shows no error. This affects every mod, not only this one (BepInEx issue #1303). Running the game through Rosetta fixes it:

1. Open run_bepinex.sh in the Valheim folder.
2. Change export ARCHPREFERENCE="arm64,x86_64" to export ARCHPREFERENCE="x86_64,arm64".
3. If macOS says the developer can't be verified, run xattr -d com.apple.quarantine libdoorstop.dylib in the same folder.

Updating BepInEx puts the old line back, so do it again after an update.

About

Made by mikamarik. I wrote the code together with Claude Opus 5, an AI model by Anthropic. Every feature was tested in the game, by hand and with automated test runs.

Found a bug or have an idea? Open an issue on GitHub.

License

MIT
