TerrainMistile
Spawns configurable TerrainMistiles from changed terrain. They seek the edit, detonate, and reset player-made height/paint changes while preserving world/location terrain. Tune biome chance, interval, radius, health, color, and base protection.
TerrainMistiles try to reset changed terrain, but players can stop them by destroying them before impact.
Terrain changes near player bases can be protected from TerrainMistile spawn checks. The base-check radius and required number of unique base prefabs are configurable per biome.
TerrainMistile spawn chance, interval, visual color, health, and reset radius can be configured per biome.
How It Works
- Changed terrain is grouped into 32m terrain units.
- Each changed unit rolls on its biome rule interval while at least one player is within
playerSearchRadius.
- TerrainMistiles target changed terrain points, not players.
- A TerrainMistile reset happens when it reaches terrain impact or uses its self-destruct attack.
- Killing a TerrainMistile before self-destruct does not reset terrain.
- Reset clears player-style
TerrainComp height and paint deltas in resetRadius.
- Location and world baseline terrain are preserved, so location terrain changes can remain after reset.
- TerrainMistiles use nonblocking colliders so terrain and pieces do not trap them before impact.
TerrainMistile.yml
- Main spawn rule file.
- Synced from the server.
- Generated automatically if missing.
defaults supplies fallback values.playerBasePrefabs is the editable base-protection prefab list.- Every other top-level key is treated as a biome rule.
- Expand World Data custom biomes can use their custom biome name or numeric biome value.
YAML Example
# Expand World Data custom biomes can use their custom biome name or numeric biome value.
# defaults and playerBasePrefabs are reserved. Every other top-level key is treated as a biome rule.
defaults:
interval: 60
playerSearchRadius: 32
spawnChance: 0.25
maxDeformationSpawnChanceBonus: 0.25
maxSpawn: 3
perPlayerSpawn: true
playerBaseValue: 1
baseCheckRadius: 24
spawnRadius: 16~32
spawnAltitude: 8
resetRadius: 8
health: 1
visualColor: "#45FF5A"
Meadows:
interval: 120
spawnChance: 0.1
resetRadius: 4
visualColor: "#7CFF6B"
BlackForest:
interval: 120
resetRadius: 6
visualColor: "#2ED36F"
Swamp:
playerBaseValue: 2
visualColor: "#8FBF3F"
Mountain:
interval: 120
playerBaseValue: 2
resetRadius: 6
visualColor: "#8FE8FF"
Plains:
interval: 120
playerBaseValue: 3
resetRadius: 6
visualColor: "#FFD15C"
Mistlands:
interval: 120
playerBaseValue: 3
resetRadius: 6
visualColor: "#B58CFF"
AshLands:
playerBaseValue: 4
visualColor: "#FF5A2E"
DeepNorth:
playerBaseValue: 4
visualColor: "#BFEFFF"
Ocean:
visualColor: "#3EA7FF"
playerBasePrefabs:
- workbench
- forge
- portal
The generated YAML includes the full vanilla playerBasePrefabs list. Add custom player-placed piece prefab names there if they should protect terrain from TerrainMistile spawn checks.
Spawn Rule Fields
interval: seconds between spawn rolls for one changed 32m terrain unit. 0 disables that biome.playerSearchRadius: players within this horizontal radius activate rolls for a changed unit.spawnChance: base chance used when a unit interval is ready and at least one player is nearby.maxDeformationSpawnChanceBonus: bonus added to spawnChance when the largest height deformation in the 32m terrain unit reaches Valheim's 8m deformation cap. The bonus scales linearly from 0m to 8m and the final chance is clamped to 1.maxSpawn: maximum active TerrainMistiles with targets within 32m of the target. 0 disables that biome.perPlayerSpawn: if true, one successful roll can spawn up to one TerrainMistile per nearby player, capped by maxSpawn and available targets.playerBaseValue: unique listed player-placed base prefab type count required to skip spawn checks. 0 disables the player base check.baseCheckRadius: horizontal radius used by playerBaseValue.spawnRadius: horizontal spawn distance from the selected nearby player. Use 24 for fixed distance or 16~32 for a random range.spawnAltitude: height above solid ground where TerrainMistile spawns.resetRadius: terrain height and paint reset radius saved onto each spawned TerrainMistile.health: maximum and current health applied when TerrainMistile spawns.visualColor: HTML hex color used for flames, sparks, and light.

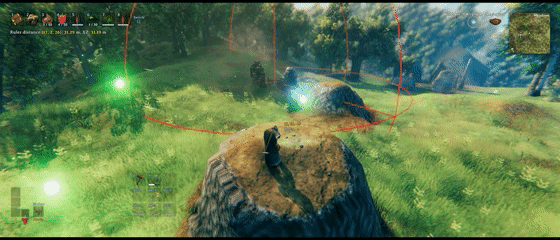

Player Base Protection
playerBaseValue counts unique prefab names from playerBasePrefabs within baseCheckRadius meters of the changed terrain point. Repeated copies of the same prefab count once.
Only player-placed instances are counted. Internally, TerrainMistile checks the ZDO longs.creator field and ignores matching prefabs when creator == 0, which filters out noCreator world and location pieces.
Examples:
playerBaseValue: 0: no base protection check.playerBaseValue: 1: one listed player-placed prefab nearby is enough to skip spawn checks.playerBaseValue: 3: three different listed player-placed prefab types must be nearby to skip spawn checks.
Tuning Tips
- Increase
interval to reduce spawn roll frequency.
- Lower
spawnChance to make TerrainMistiles rarer without disabling a biome.
- Lower
maxDeformationSpawnChanceBonus if near-cap terrain edits should not strongly increase spawn chance.
- Set both
spawnChance and maxDeformationSpawnChanceBonus to 0 for chance-based suppression, or use interval: 0 / maxSpawn: 0 to disable a biome.
- Increase
playerSearchRadius if changed terrain should stay active from farther away.
- Increase
resetRadius for tall or wide terrain edits that need a larger reset area.
- Raise
playerBaseValue in dangerous biomes if simple one-piece bases should not fully suppress spawns.
